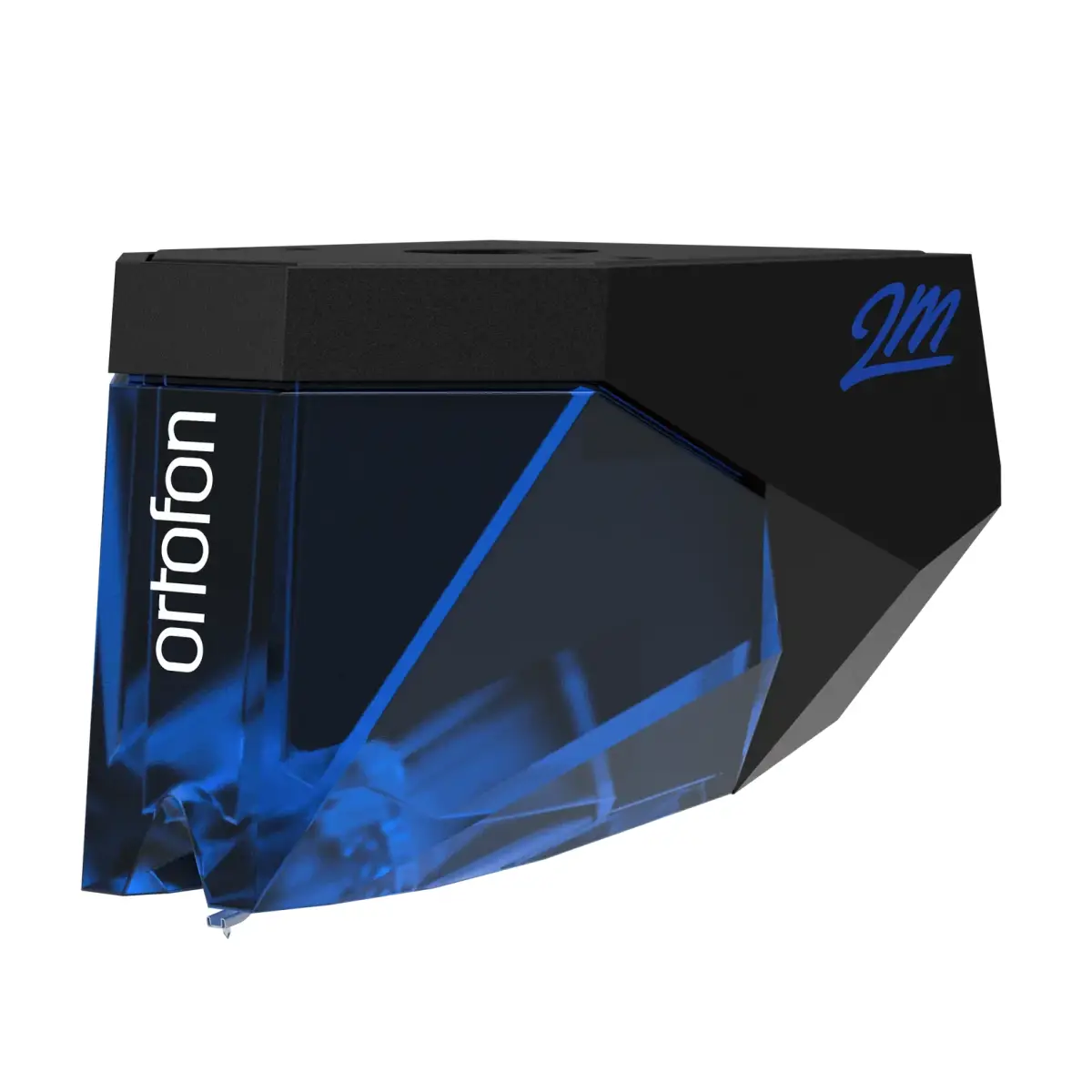

Ortofon 2M Blue MM Phono Cartridge - New
HomeStore

Ortofon 2M Blue MM Phono Cartridge - New

Ortofon 2M Blue MM Phono Cartridge - New

$219.99
Ortofon 2M Blue MM Phono Cartridge - New—
$219.99

The Story

General

The goal for any cartridge should be to reproduce the sound as close to the artist's vision as possible, and the 2M blue takes you further on this journey of authenticity. With the 2M Blue, you get serious about listening to vinyl.

Accuracy level

The goal for any cartridge should be to reproduce the sound as close to the artist's vision as possible, and the 2M Blue takes you further on this journey of authenticity. With the 2M Blue, you get serious about listening to vinyl.

Stylus

The Nude diamond is cut in an Elliptical shape, and when it hits the groove, it is like travelling through both space and time to the very moment the music was recorded.

Compadiblitiy

Created to facilitate simple installation of the cartridge and to ensure compatibility with the dimensions and weights of today's most popular turntables, the 2M Series offers four distinct product versions:

The 2M is for most common turntables on the market, the 2M Premounted for customers who wish direct and easy mounting and replacement on their S-shaped tonearm, the 2M Verso for bottom mount headshells, and the 2MR, which is designed with cartridge housing tailored for turntables and tonearms like Rega, matching their requirement for low-form factor cartridges.

Featuers:

The 2M Blue features Ortofon’s very own invention and trademark: split pole pins. An invention that enables moving magnet cartridges to have a flat frequency response as with a moving coil cartridge.

In this video, you will learn about four cartridge technologies, including the split pole pin technology. Leif Johannsen, Ortofon's Chief Officer of Acoustics and Research, explains how the technology works by reducing the loss of energy and hereby the loss of the musical signal.

High Level of Sonic Accuracy:

The engine provides an increased output of 5.5 mV optimized sound reproduction and a high level of sonic accuracy. The 2M Blue adds more dynamics and resolution, sounds more open, and reproduces more details compared to the 2M Red model.

Specifications:

  • Channel balance at 1 kHz
    1.5 dB
  • Output voltage at 1 kHz, 5cm/sec
    5.5 mV
  • Channel separation at 1 kHz
    25 dB
  • Frequency response 20 Hz - 20 kHz
    20-20.000 Hz + 2 / - 1 dB
  • Tracking ability at 315 Hz
    80 µm
  • Compliance, dynamic, lateral
    20 µm/mN
  • Cantilever material
    Aluminium
  • Stylus type
    Nude Elliptical
  • Stylus tip radius
    r/R 8/18 µm
  • Tracking force range
    1.6-2.0 g (16-20 mN)
  • Tracking force, recommended
    1.8 g (18 mN)
  • Tracking angle
    20°
  • Internal impedance, DC resistance
    1.3 kOhm
  • Cartridge colour
    Black/Blue
  • Cartridge weight
    7.2 g
  • Premounted cartridge weight
    16.7 g
  • Recommended load resistance
    47 kOhm
  • Internal inductance
    700 mH
  • Stylus colour
    Blue
  • Recommended load capacitance
    150-300 pF

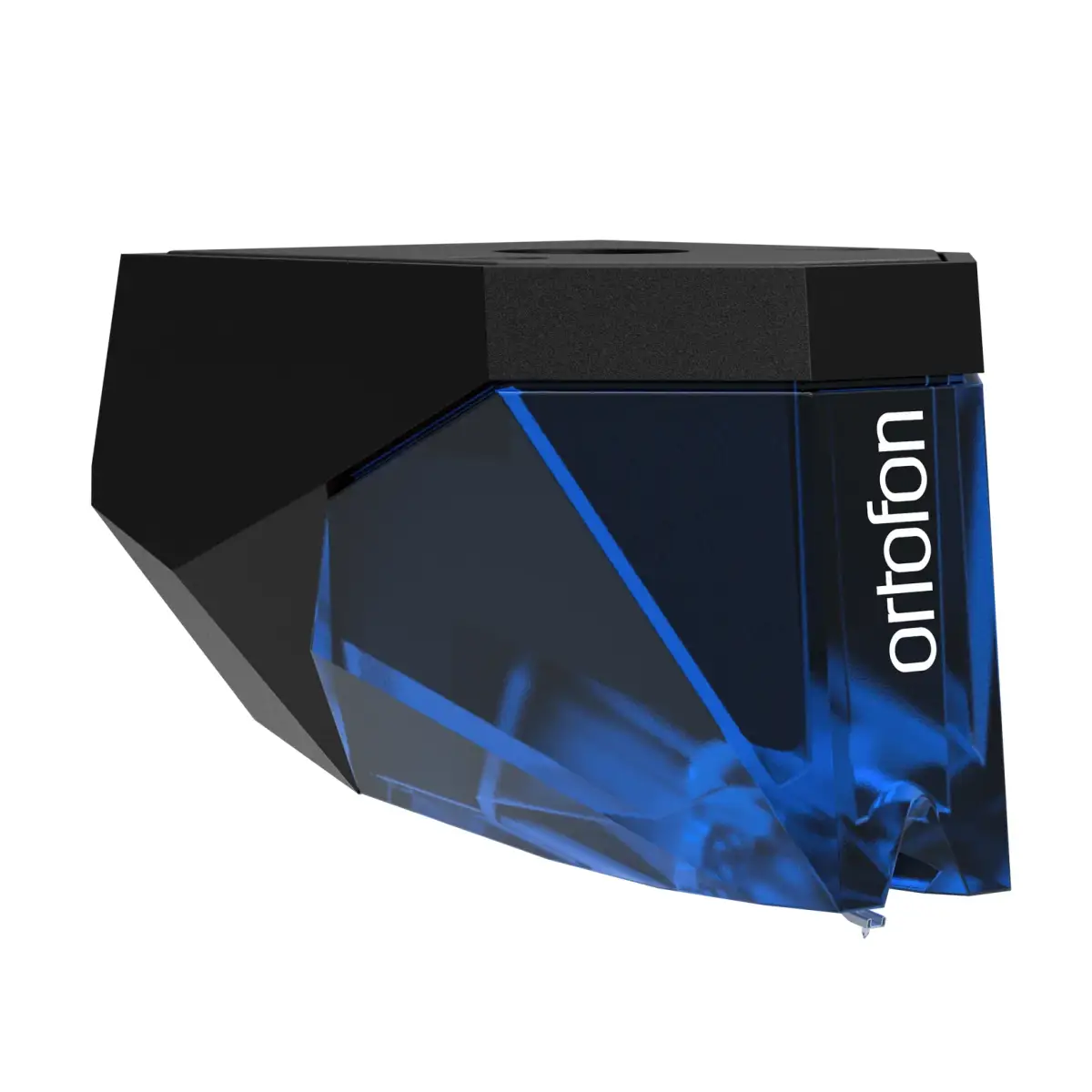

Ortofon 2M Blue MM Phono Cartridge - New - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

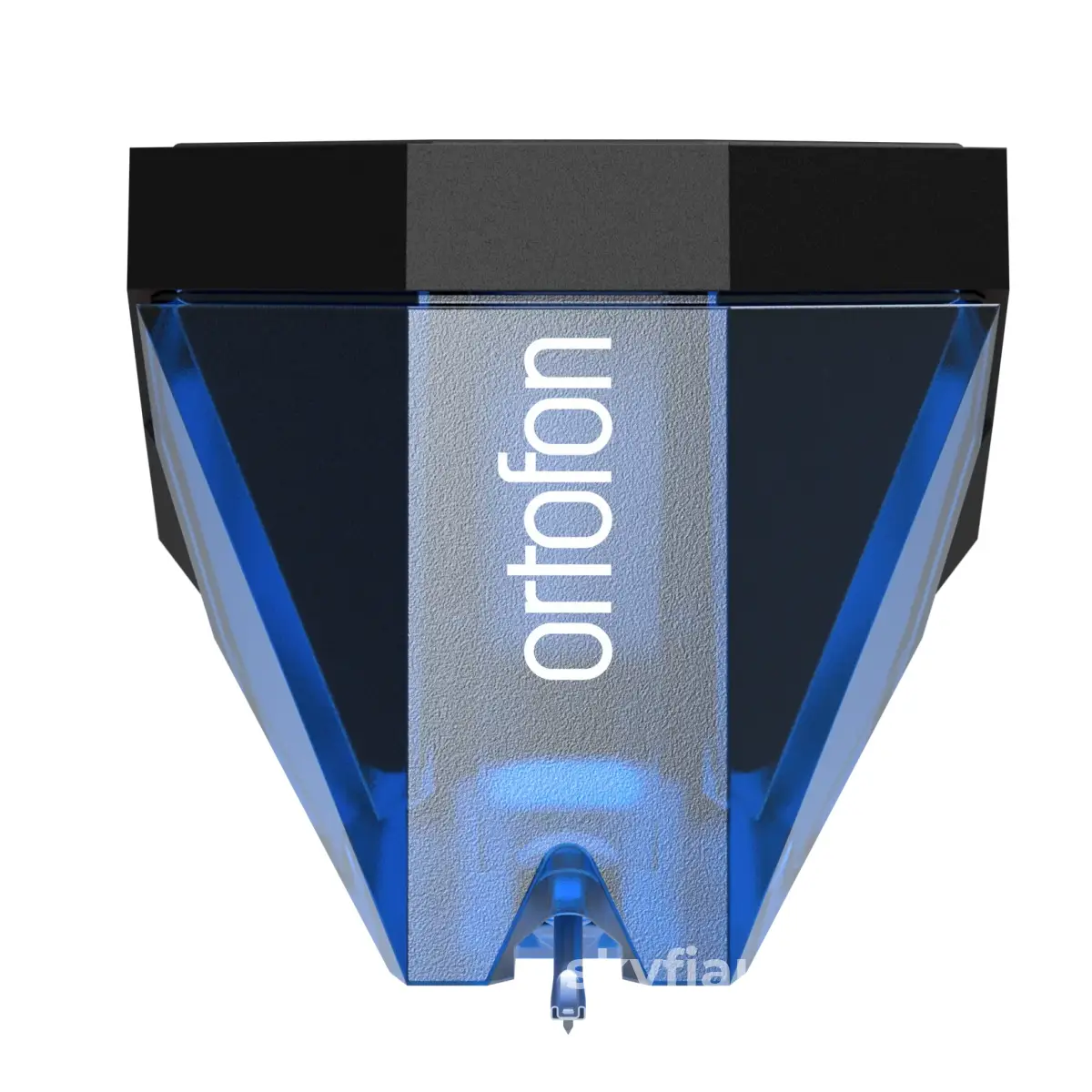

Ortofon 2M Blue MM Phono Cartridge - New - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Ortofon 2M Blue MM Phono Cartridge - New - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

General

The goal for any cartridge should be to reproduce the sound as close to the artist's vision as possible, and the 2M blue takes you further on this journey of authenticity. With the 2M Blue, you get serious about listening to vinyl.

Accuracy level

The goal for any cartridge should be to reproduce the sound as close to the artist's vision as possible, and the 2M Blue takes you further on this journey of authenticity. With the 2M Blue, you get serious about listening to vinyl.

Stylus

The Nude diamond is cut in an Elliptical shape, and when it hits the groove, it is like travelling through both space and time to the very moment the music was recorded.

Compadiblitiy

Created to facilitate simple installation of the cartridge and to ensure compatibility with the dimensions and weights of today's most popular turntables, the 2M Series offers four distinct product versions:

The 2M is for most common turntables on the market, the 2M Premounted for customers who wish direct and easy mounting and replacement on their S-shaped tonearm, the 2M Verso for bottom mount headshells, and the 2MR, which is designed with cartridge housing tailored for turntables and tonearms like Rega, matching their requirement for low-form factor cartridges.

Featuers:

The 2M Blue features Ortofon’s very own invention and trademark: split pole pins. An invention that enables moving magnet cartridges to have a flat frequency response as with a moving coil cartridge.

In this video, you will learn about four cartridge technologies, including the split pole pin technology. Leif Johannsen, Ortofon's Chief Officer of Acoustics and Research, explains how the technology works by reducing the loss of energy and hereby the loss of the musical signal.

High Level of Sonic Accuracy:

The engine provides an increased output of 5.5 mV optimized sound reproduction and a high level of sonic accuracy. The 2M Blue adds more dynamics and resolution, sounds more open, and reproduces more details compared to the 2M Red model.

Specifications:

  • Channel balance at 1 kHz
    1.5 dB
  • Output voltage at 1 kHz, 5cm/sec
    5.5 mV
  • Channel separation at 1 kHz
    25 dB
  • Frequency response 20 Hz - 20 kHz
    20-20.000 Hz + 2 / - 1 dB
  • Tracking ability at 315 Hz
    80 µm
  • Compliance, dynamic, lateral
    20 µm/mN
  • Cantilever material
    Aluminium
  • Stylus type
    Nude Elliptical
  • Stylus tip radius
    r/R 8/18 µm
  • Tracking force range
    1.6-2.0 g (16-20 mN)
  • Tracking force, recommended
    1.8 g (18 mN)
  • Tracking angle
    20°
  • Internal impedance, DC resistance
    1.3 kOhm
  • Cartridge colour
    Black/Blue
  • Cartridge weight
    7.2 g
  • Premounted cartridge weight
    16.7 g
  • Recommended load resistance
    47 kOhm
  • Internal inductance
    700 mH
  • Stylus colour
    Blue
  • Recommended load capacitance
    150-300 pF
